Overview FEATURES AT A GLANCE GMM-100LY is a new product,exclusive launch of wireless remote control plate beveling mach
SHARE

Description

Overview
Basic Info.
Model NO. GMMA-100LY
Power Source Electric
Certification CE, ISO
Power 4520W
Machinery Test Report Provided
Key Selling Points Key Selling Points
Function Plate Bevel
Usage Milling/Beveling
Weight 260kg
Transport Package Wooden Case
Specification Depends on model
Trademark TAOLE
Origin Shanghai, China
HS Code 8460909000
Production Capacity 500 Sets Per Month
Product Description
FEATURES AT A GLANCE

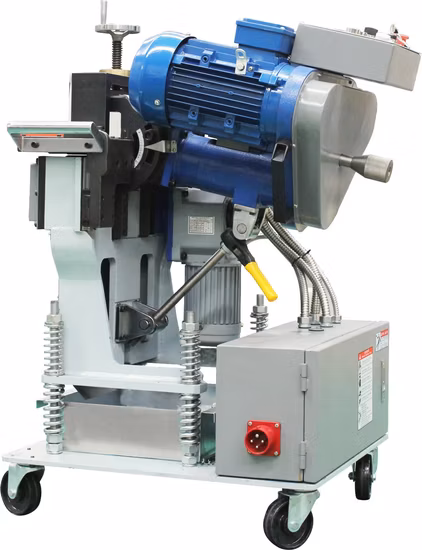

Gmma-100ly Sheet Metal Deburring Machine Metal Steel Beveling Milling Chamfering Machine

GMM-100LY is a new product,exclusive launch of wireless remote control plate beveling machine,specially for heavy duty metal sheets for fabrication preperation. It is available for plate thickness 8-100mm, bevel angel 0 to 90 degree for vary type of welding joint such as V/Y,U/J, 0~90 degree. Max bevel width could reach 100mm Specifications.

Gmma-100ly Sheet Metal Deburring Machine Metal Steel Beveling Milling Chamfering Machine

PRODUCT SPECIFICATIONS
ModelsGMMA-60SGMMA-60LGMMA-80AGMMA-80RGMMA-100L
Power SuppyAC 380V 50HZAC 380V 50HZAC 380V 50HZAC 380V 50HZAC 380V 50HZ
Total Power4520W4520W4920W4920W6520W
Spindle Speed1050r/min1050r/min500~1050r/min500-1050mm/min500-1050mm/min
Feed Speed0~1500mm/min0~1500mm/min0~1500mm/min0~1500mm/min0~1500mm/min
Clamp Thickness6~60mm6~60mm6~80mm6~80mm6~100mm
Clamp Width>80mm>80mm>80mm>80mm>100mm
Clamp Length>300mm>300mm>300mm>300mm>300mm
Bevel Angel0~60 degree0~90 degree0~60 degree0~±60 degree0~90 degree
Singel Bevel width0-20mm0-20mm0-20mm0-20mm15-30mm
Bevel Width0-45mm0-60mm0-70mm0-70mm0-100mm
Cutter DiameterDia 63mmDia 63mmDia 80mmDia 80mmDia 100mm
Inserts QTY6 pcs6 pcs6 pcs6 pcs7 pcs
Worktable Height700-760mm700-760mm700-760mm700-760mm810-870mm
Suggest Table Height730mm730mm730mm730mm830mm
Worktable Size800*800mm800*800mm800*800mm1200*800mm1200*1200mm
Clamping WayAuto ClampingAuto ClampingAuto ClampingAuto ClampingAuto Clamping
Machine Height AdjustHydraulicHydraulicHydraulicHandwheelHandwheel
Machine N.Weight200 kgs225 kgs245 kgs310 kgs420 kgs
Machine G Weight255 kgs260 kgs280 kgs380 kgs480 kgs
Wooden Case Size800*690*1140mm950*700*1230mm800*690*1140mm1100*630*1340mm950*1180*1430mm
Exhibition And Certificate

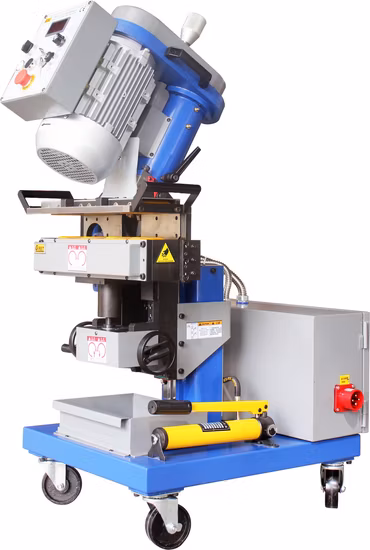

Gmma-100ly Sheet Metal Deburring Machine Metal Steel Beveling Milling Chamfering Machine

Machine Packing

Gmma-100ly Sheet Metal Deburring Machine Metal Steel Beveling Milling Chamfering Machine

SPC.Clamp Thickness/MMMachine N.WeightMachine G WeightWooden Case Size
GMMA-60S6~60mm200KG255KG800*690*1140mm
GMMA-60L6~60mm225KG260KG950*700*1230mm
GMMA-80A6~80mm245KG280KG800*690*1140mm
GMMA-80R6~80mm310KG380KG1100*630*1340mm
GMMA-100L6~100mm420KG480KG950*1180*1430mm

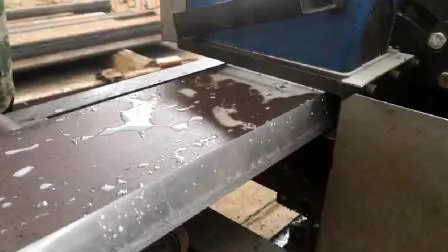

Successful ProjectProofing V-shaped groove

Gmma-100ly Sheet Metal Deburring Machine Metal Steel Beveling Milling Chamfering Machine

Proofing V-shaped groove
SIMILAR PRODUCTSOCE/OCP-Cold Cutting and Beveling improves safety-Cutting and Beveling simultaneously-Split Frame design for easy mounted on pipeline-Tools feed automatically optional-Machining heavy-wall pipe from 1'' up to 72''-Optional tools for suitable for multi pipe materials with vary wall thicknessISE/ISP-Work capacity from size ID18-820MM-Wall thickness <=15mm-75mm-The groove angle can be arbitrarily selected between 0°-45°-Explosion Proof-Stable Performance-Simple structure makes easy to miantence-Occasionally overload won't burnST-40
-Electrode Grinder using reliable and quality micro motor with R.P.M controlled electronically.-Unique design for with dust collection to reduce human harm.-Easy adjust on bevel angel and tungsten diameter and portable design.-High Precision on surface to improve welding quality.FAQ

Q: Are you manufacture?A; Yes. We are China manufacture. Q: What is your deliver Time?
A:Standard machine can be ready in 3-7 days. Customized machine will be 25-45 days
Q: What about payment terms?
A:We will suggest 100% by T/T while amount less than USD 10000 while machine ready in few days. 50% deposit, 50% balance for bigger amount or customizedprojects
Q: What about your after sales service?
A: It is a simple machine tools on operation and we have English manual with machine.Machine can direct use after your receive it. In furhter any problems. We can provide video and remote service by Email,Phone and supply with necessary spare parts etc. Thank you.
